LineVision Esri ArcMap Add-In

Add-in for Geotagged Video & Photo Playback, Analysis, Data Fusion and Project Reporting with Esri ArcMap

Simple Geospatial Video Add-in for ArcGIS


Remote GeoSystems | LineVision Esri ArcMap Add-in Logo

Our LineVision Esri ArcMap is an "add-in" or extension for Esri's industry-leading, GIS desktop application. LineVision Esri ArcMap Add-in gives GIS professionals an easy way to map, analyze and package geo-referenced video, photos, notes and files in a familiar and traditional Esri mapping environment.

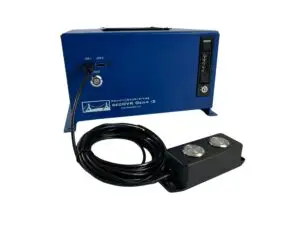

The LineVision Esri ArcMap Add-in supports what is referred to as geotagged or geospatial video, meaning digital video files with associated GPS companion or sidecar files. Geospatial video is currently the most common method used by GPS-enabled cameras and DVR systems, from simple action cameras to consumer and commercial drones, to purpose-built airborne and vehicle video systems like our own geoDVR. It's also important to note that geospatial video usually differs in geotagging methods and data structure than the MISB Full Motion Video (FMV) standard specifically utilized by Esri's ArcGIS Full Motion Video (FMV) add-in, which is why customers will often use both, depending on which video data type they are working with at the time.

(You will need to have the ArcMap software installed to use the LineVision Esri ArcMap add-in. If you are not an ArcMap user, please consider our stand-alone LineVision Desktop application which is designed for non-GIS users who want to leverage Esri data and maps.)

Build Interactive Reports with Videos, Photos, Notes & Files in Esri ArcMap

    The LineVision Add-In makes it easy to add and share geotagged video and oblique photos in Esri ArcMap.

  • Map-based Playback of Geo-referenced Video Files
  • Multi-channel HD & SD Video Viewing
  • Simple import and viewing of High-resolution Oblique still Photos
  • Snap & Save Geo-tagged Photos from Video
  • Mark Features & Points of Interest with Annotations
  • Add & Edit Documents and Files Right on the Map
  • Full Mapping Capabilities of Esri ArcMap
  • Open & Create Portable geoProject Packages
  • Compatible with Video from Commercial Drones & UAS
  • And more…

How it Works

Instantly load videos and photos to Esri ArcMap from many GPS-enabled consumer cameras and drones such as FMV from this DJI Inspire UAV.

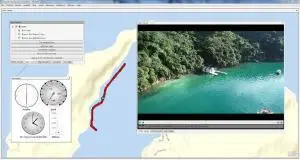

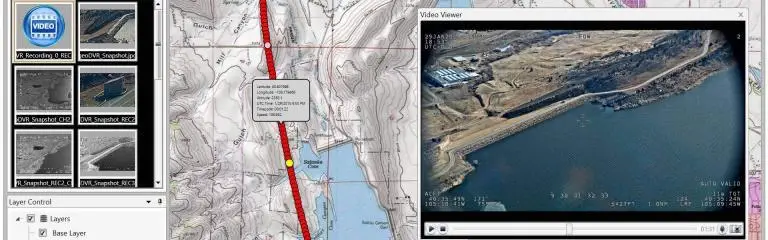

As the video plays, a cursor moves along the GPS track on the map, constantly indicating where the current video view was captured. Simply click any point along the path to geographically “navigate the video” to that exact location. If something of interest is detected in the video, users may pause and “snap” a still image from the video, which is then geo-tagged.

User can also easily geo-tag and add documents and other files right on the map. All these imported data types can be saved in a Remote GeoSystems .geoProject file for data portability and future analysis in LineVision desktop, cloud & server software.

Try it Free

We want to make sure you have the right software for your project needs and offer a full-featured 7-day trial of our LineVision Esri ArcMap Add-In.

Request Trial

LineVision ArcMap Add-In Details



Below are some of the most essential features in LineVision Esri ArcMap Add-In.

Video
  • Supports for high-definition and standard definition (NTSC & PAL) video files
  • Single camera map-based video playback
  • Multi-camera map-based video playback (up to 4 geo-synchronized files)
  • Navigate video by GPS waypoints (when applicable)
  • Chain together multiple geospatial video segments for continuous playback
  • Set custom geo-fence radius for moving platform on mission route
  • Export waypoints from video as a GPX file
Photos
  • Load oblique photos
  • Geotag or re-geotag photos
  • Snap and save geotagged digital still images from videos
  • Manipulate photos
Audio
  • Listen to audio from the video files
Annotations & Documents
  • Geotag & update annotations on the map
  • Geotag & update documents and files on the map
Mapping
  • Because LineVision Esri ArcMap is a true “Add-In” or extension to the Esri ArcMap desktop software, users will have all of the native mapping capabilities available in their version of ArcMap.
  • Load GPX files with and without video
Compatible Video Cameras
  • COTS (consumer-off-the-shelf) video cameras like Garmin ViRB, ContourGPS and some Sony POV & Handycam models
  • Commercial and professional Drones like the DJI Inspire and Phantom Pro series UAVs
  • Airborne multi-sensor gyro-stabilized systems connected to a geoDVR or other compatible GPS-enabled DVR
  • Multi-camera mobile mapping vehicles using a geoDVR or other compatible GPS-enabled DVR
Reporting & Data Portability
  • Save your data fusion and analysis work reports as a .geoProject file for easy collaboration, data portability and simple delivery to clients and end-users with LineVision
Interface
  • All panels are movable and can be “floating,” “docked” and resized
  • Customize and save preferred layout and application settings
Geospatial Video File Support
Video File Format: .MP4, .H264, .AVI, .TS, .MOV, .ASF, .PS, .VOB, .MPG4, .MPEG4, .MP2, .MPG2
GPS Companion File Format: .GPX, .FIT, .SRT (DJI drones), .RGPS, .CSV, KML, .TXT, .LOG, .MOFF (Sony action cameras), .XML (Cloud Cap Technology, Red Hen Systems)
Embedded GPS Metadata: MISB FMV, DJI GPS in Closed Captions, Remote GeoSystems “Whisper” (Persistent GPS Encoding)

Geospatial Photo Support
JPEG: GPS metadata in EXIF header

Geospatial Data Support
Vector Files: Esri-compatible Shape Files (SHP)
Raster Imagery Files: Esri-compatible Raster Imagery files.
Streaming Data Endpoints: Esri-compatible Streaming Data Endpoints (ArcMap Add-In for Server, ArcMap Add-In Online, 3rd Party Services, etc.)

Geospatial Project Packaging
Single PC, Local Network or Portable Drive:
  • Remote GeoSystems .geoProject file
Portable Project File:
  • Remote GeoSystems .geoProject “Uncompressed” file
  • Remote GeoSystems .geoProject “Pack & Go” .RGS file (similar to a zip file)
  • Video with GPS Companion Files

LineVision Esri ArcMap Add-In editions are supported on Microsoft Windows Operating Systems versions 7, 8 & 10 and Esri ArcMap version 10.2 and higher.

Recommended PC Specifications
  • Processor: Intel Core i7 or better
  • Ports: (2) USB 3.0
  • RAM: 8GB Minimum, (Windows 7, 64 Bit or better)
  • Hard Drive: 1 TB Minimum (or more depending on recording length. Ample storage is recommended as video files can take considerable space).
  • Video Card: minimum of 1 GB of memory
Minimum PC Specifications
  • Processor: Intel Core i3 or better
  • Ports: (1) USB 2.0
  • RAM: 4GB Minimum
  • Hard Drive: 320 GB Minimum (or more depending on recording length. Ample storage is recommended as video files can take considerable space).
  • Video Card: minimum of 1 GB of memory

Open geoProjects saved in LineVision Esri ArcMap Add-In in these other LineVision versions:

Get a Web Demo

Get a Learn how LineVision Esri ArcMap Add-In can add value to your operations and workflow with a no-obligation web demonstration, personalized for your business needs.

Schedule Demo

Please also note the Remote GeoSystems LineVision Esri ArcMap Add-in differs from our partner Esri’s FMV Add-in, which supports the MISB FMV standard. (If you need to convert geopsatial video into MISB FMV compatable files for viewing in the Esri ArcGIS FMV Add-in, PAR Gv3.0, FalconView or other FMV viewers, please Contact Us to learn more about our forthcoming FMV converter software.)

Frequently Asked Questions (FAQs)

(click below to expand)

LineVision Esri ArcMap Add-in

Yes. LineVision accepts many different GPS Data companion file types and to make it easy we have a published very simple CSV spec for LineVision.

The format is as follows:

  • Column 1: Latitude
  • Column 2: Longitude
  • Column 3: Altitude
  • Column 4: UTC Time
  • Column 5: Speed
  • Column 6: Course

    • The 1st row MUST be the following:

    LATITUDE, LONGITUDE, ALTITUDE, UTCTIME, SPEED, COURSE

    From there, each additional row just needs to be the corresponding values.

    You can download the Simple CSV file format example by clicking on the document title below.

    Remote GeoSystems LineVision Sample CSV Format (Simplest)

    Back to Top

    Yes. You can save your project as a geoProject. That way end user only needs to go FILE > Open geoProject to restore the project as you last saved it.

    Back to Top

    To load a single geotagged video to LineVision go to File > Open Video then navigate to Windows folder where you downloaded the geotagged video AND GPS "companion" or "sidecar" files. This should load up the video and play with the clickable GPS track on the map.

    Check out this short tutorial:
    Back to Top
    LineVision desktop software is currently licensed to a specific PC as a perpetual license and includes free updates for the first year and an optional 20% annually for upgrades in year 2 and beyond. Click here to request a LineVision quote.
    Back to Top

    The LineVision Esri ArcMap Add-in does not currently support video with MISB-compliant metadata, however our stand-alone LineVision Desktop and Video GeoTagger PRO does support MISB Full Motion Video files.

    Remote GeoSystems LineVision Esri ArcMap Add-in is designed to let you analyze and manage georeferenced video with "companion" GPS data files in ArcMap. This differs from Esri’s FMV Add-in, which supports the MISB FMV standard. However you can install and use both the LineVision Esri ArcMap Add-in and Esri’s FMV Add-in in ArcMap.

    Back to Top
